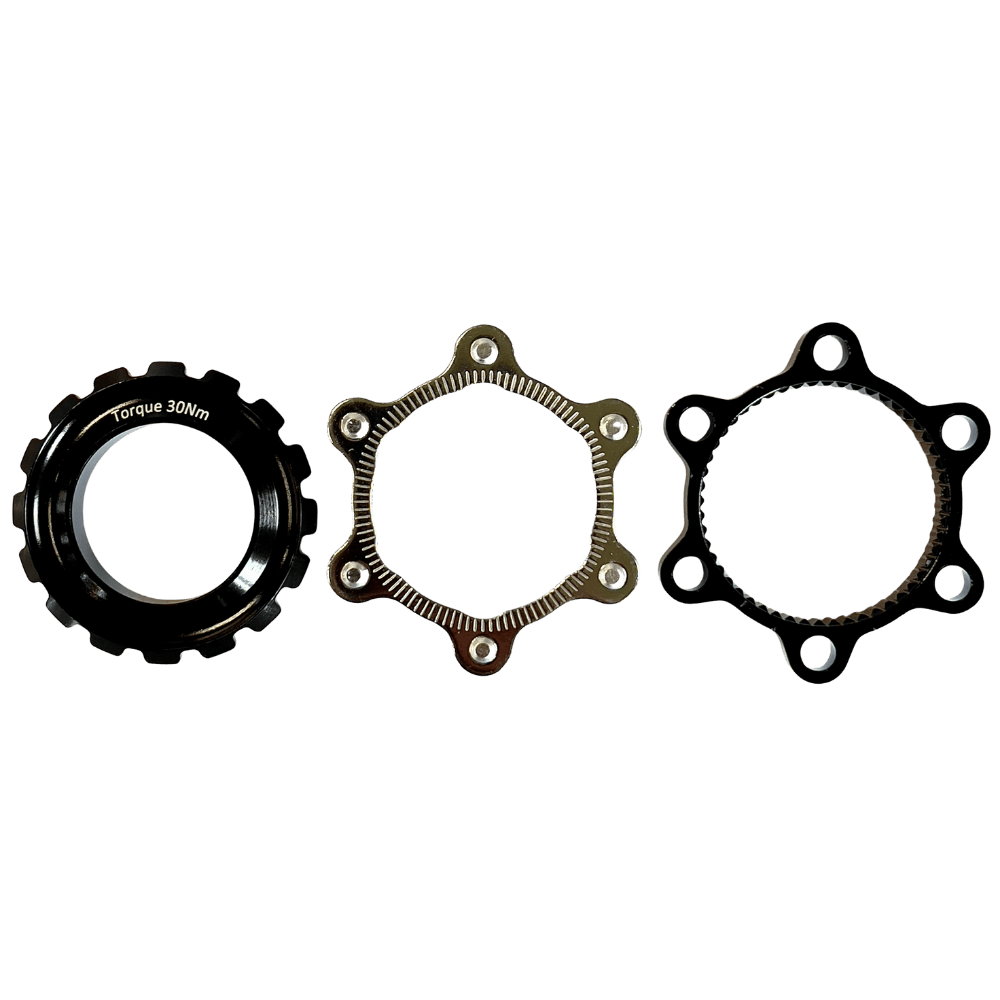

The BlackOne Center Lock to 6-bolt adapter is a high-quality, well-engineered solution for riders who have Center Lock hubs but prefer to use 6-bolt rotors. It consists of a splined aluminum flange and a threaded collar.
– Rotor compatibility: This adapter is designed to be used with IS (International Standard) 6-bolt brake rotors.
– Hub compatibility: It is compatible with MTB hubs that have a Center Lock mount.
– Axle compatibility: 9-10mm QR and 12-20mm thru-axle
– Tools: The lockring is tightened with a bottom bracket tool, not a standard cassette tool.
– Material: The adapter is made of aluminum.
– Maximum tightening torque: 30Nm.
– Weight: the adapter weights approximately 7.5g.
– The splined flange of the adapter slides onto the Center Lock splines of the hub.
– The 6-bolt rotor is placed over the flange, with the bolt holes fitting onto the six small pegs.
– A washer is added over the rotor.
– The threaded lockring is screwed onto the hub and tightened with a bottom bracket tool, clamping the entire assembly securely.
| Weight | 7.5 g |
|---|
